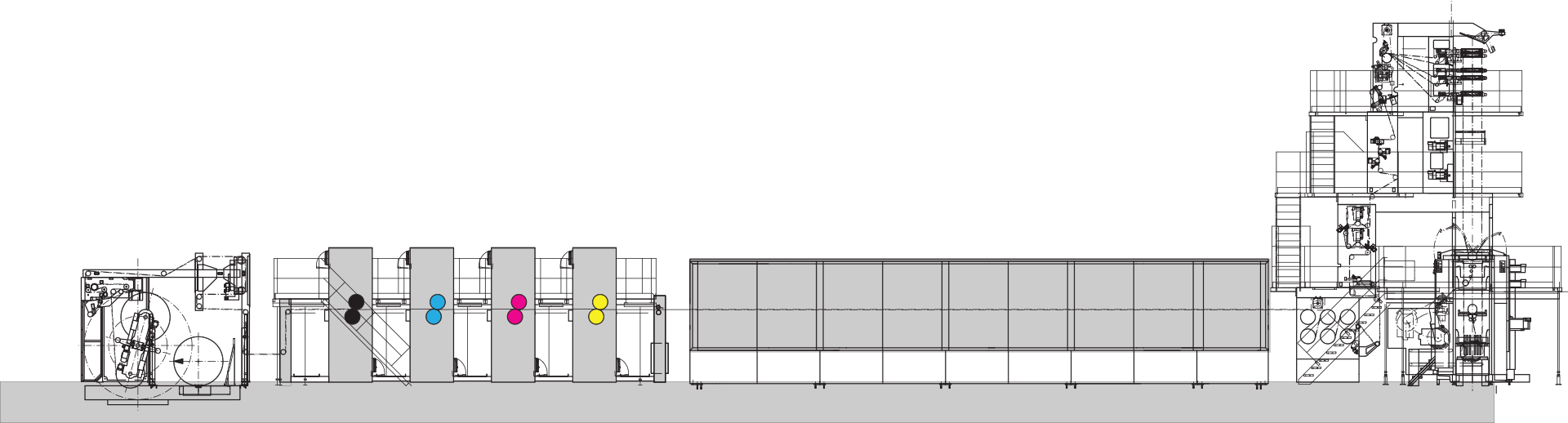

Lithoman 72

WEB OFFSET PRESS WITH HEATER

Composition

4 printing units
1 reel
1 double chopper folder
1 gluing unit
Circumference: 1197 mm
Max. reel width: 1980 mm
Paper weight: 40-135 g/m2

Productions

Tabloid	Finished		g/m²	Raw from press
	40 pages 4/4	290 mm w x 180-386 mm h	36-80 g	300 mm w x 190-396 mm h
	32 pages 4/4	290 mm w x 205-476 mm h	36-135 g	300 mm w x 215-486 mm h
	24 pages 4/4	290 mm w x 276-476 mm h	36-135 g	300 mm w x 286-486 mm h
	20 pages 4/4	290 mm w x 180-386 mm h	36-100 g	300 mm w x 190-396 mm h
	16 pages 4/4	290 mm w x 205-476 mm h	38-135 g	300 mm w x 215-486 mm h
	12 pages 4/4	290 mm w x 276-476 mm h	38-135 g	300 mm w x 286-486 mm h
	8 pages 4/4	290 mm w x 420-476 mm h	45-135 g	300 mm w x 430-486 mm h

Magazines	Finished		g/m²	Raw from press
	80 pages 4/4	115-193 mm w x 285 mm h	35-56 g	120-198 mm w x 300 mm h
	72 pages 4/4	115-215 mm w x 285 mm h	35-65 g	120-220 mm w x 300 mm h
	64 pages 4/4	115-238 mm w x 285 mm h	35-70 g	120-243 mm w x 300 mm h
	56 pages 4/4	118-238 mm w x 285 mm h	35-80 g	123-243 mm w x 300 mm h
	48 pages 4/4	138-238 mm w x 285 mm h	35-80 g	143-243 mm w x 300 mm h
	40 pages 4/4	167-238 mm w x 285 mm h	35-80 g	172-243 mm w x 300 mm h
	36 pages 4/4	115-215 mm w x 285 mm h	35-85 g	120-220 mm w x 300 mm h
	32 pages 4/4	115-238 mm w x 285 mm h	35-85 g	120-243 mm w x 300 mm h
	28 pages 4/4	118-238 mm w x 285 mm h	35-130 g	123-243 mm w x 300 mm h
	24 pages 4/4	138-238 mm w x 285 mm h	35-130 g	143-243 mm w x 300 mm h
	20 pages 4/4	167-238 mm w x 285 mm h	35-130 g	172-243 mm w x 300 mm h
	16 pages 4/4	210-238 mm w x 285 mm h	35-135 g	215-243 mm w x 300 mm h
